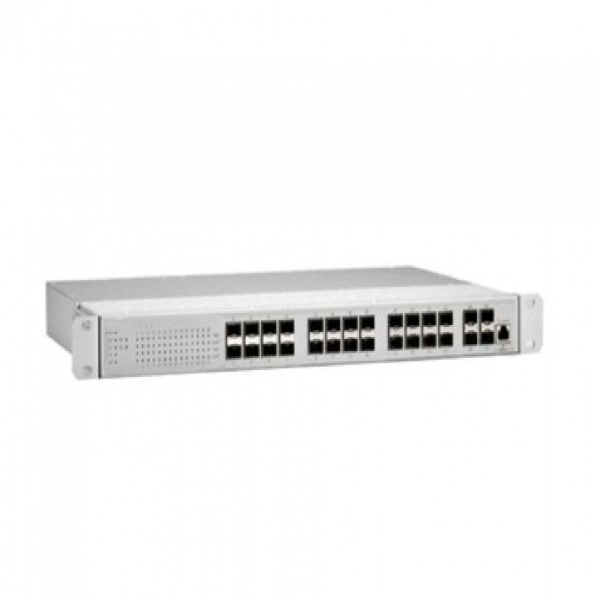

MLB-XR528-4XG-2A

► 24 / 16 / 8 / 0 Gigabit RJ45 Copper ports plus 0 / 8 / 16 /
24 100/1000 Based SFP (SX/LH/LHX) ports plus 4 10G
Based SFP+ ports
► Support 9K Jumbo frames
► Layer 2 Line-Speed Switching Fabric, non-blocking
► Layer 4 ACL (Access Control List), QCL (QoS Control List),
Port Control
► Network redundancy LACP, Spanning Tree Protocol, STP,
RSTP, MSTP
► I.A. Ring, I.A. Chain (Network Load Balancing),
250pcs@20ms
► Support BLP (Bad Link Protection) of I.A. Ring
► Ring Coupling, Multiple Ring, Dual Homing
► Port-based, Tag-based, Protocol-based VLAN, IEEE
802.1ad / QinQ, MVR
► Multicasting support IGMP v1/v2/v3, proxy & snooping
► IEEE 802.1X Port-based access control / RADIUS Server
► Per VLAN mirroring
► Redundant Power Input 100/240 VAC, 50Hz ~ 60Hz
► Reverse power protection
► SNMP v1/v2c/v3, Trap / Inform
► Port Power Saving
► -40~75ºC operating temperature
► IP 30 Protection
► 1.5KV Hipot, 2KV surge immunity on RJ45 Copper port
► Rugged Fan-less design
► Support Rack Mount, Wall Mount, Installation
► Fault Alarm Notification (Power, Ports)
► Support IPV4/V6
