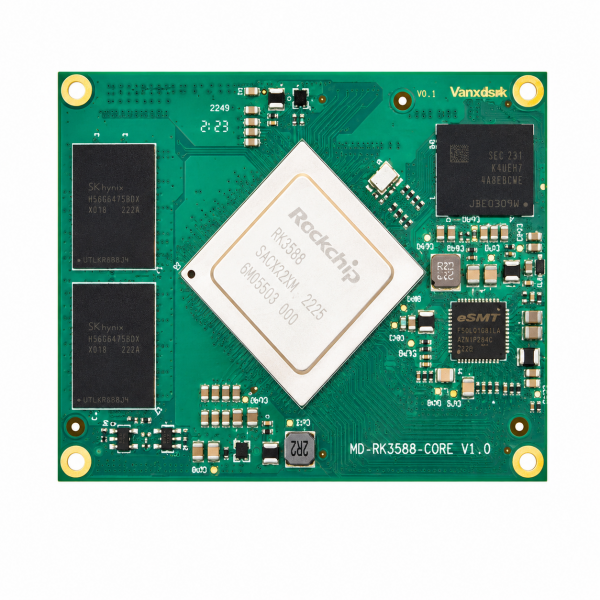

MLB-EmCom3588
Features
- High-Performance Octa-Core Processing: Rockchip RK3588 processor with 8 cores running up to 2.4GHz (4x Cortex-A76 + 4x Cortex-A55).
- Advanced Multimedia Capability: Supports 8K@60fps H.265/VP9, 8K@30fps H.264, and 4K@60fps AV1 hardware video decoding, plus 8K@30fps H.264/H.265 encoding.
- Extensive Networking & High-Speed I/O: Includes dual Gigabit Ethernet channels, 10x universal serial ports (UART), 3x CAN-Bus, 2x USB 3.0 OTG, and 2x USB 2.0 Host ports.
- Flexible Display Capabilities: Supports HDMI 2.1 up to 8K@60Hz, eDP at 4K@60Hz, and dual-route MIPI DSI interfaces.
- Powerful Expansion: Integrates 2x PCIe 3.0 lanes, 3x PCIe 2.1 lanes, and up to 152 GPIOs for robust secondary development.
- Copyright Protection & Industrial Grade: Supports hardware encryption to safeguard user software copyrights, with options supporting industrial wide-temperature environments.
The MLB-EmCom3588 board is developed based on the Rockchip RK3588 processor. This processor is a high-performance, low-power application processor chip integrating 4 Cortex-A76 and 4 Cortex-A55 cores, along with a standalone NEON coprocessor. It is suitable for ARM PCs, edge computing, personal mobile internet devices, and other multimedia products. The RK3588 features a variety of powerful embedded hardware engines, supporting multi-channel 8K video decoding and encoding, and integrates various rich high-speed communication interfaces like Gigabit Ethernet, CAN-BUS, HDMI, and USB to accelerate market delivery.
