BMS (Battery Management system) is used to protect the battery cells from damage caused by being overcharged or over-discharged. Additionally, the BMS calculates the remaining charge, monitors the battery's temperature, monitors the battery's health and safety by checking for loose connections and internal shorts.

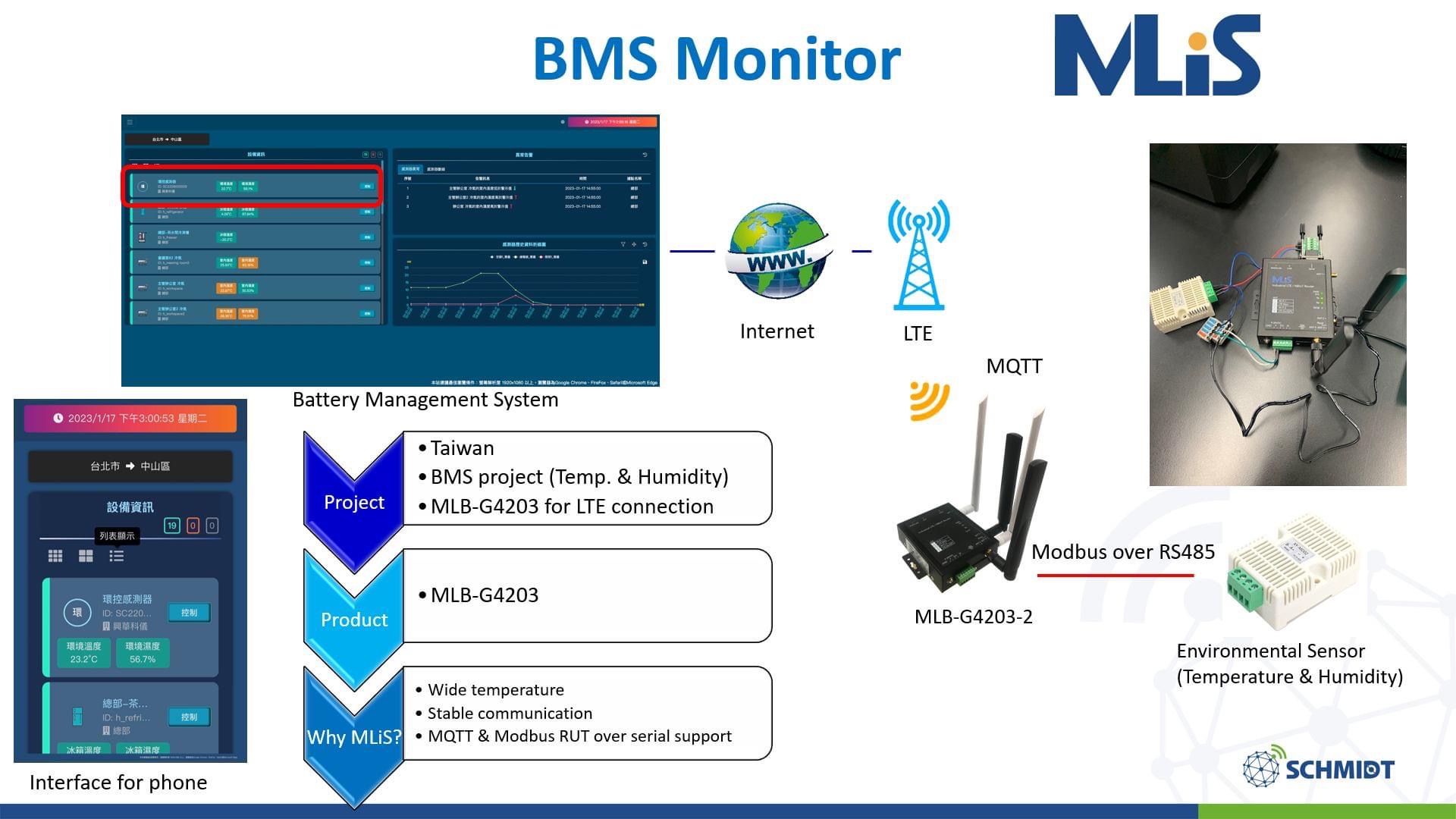

MLiS integrates BMS platform, MLB-G4203 collects temperature and humidity from sensor over RS485 by modbus RTU, and publish monitor data to BMS platform over LTE by MQTT. Users can monitor and manage BMS system easier.

MLB-G4203-2 Series is a Compact LTE/NBIoT Wi-Fi Router for IIoT Applications.

The IoT router MLB-G4203-2 Series brings serial and wireless LAN data to the cellular network. It supports LTE/NBIoT to wireless LAN redundancy and LTE/WLAN auto offload to optimize network performance. The RS232/422/485 port connects to meters, sensors, or Modbus RTU devices to send data to the remote cloud center over the cellular or WLAN network by Modbus TCP or Secured MQTT (MQTTS). The WR212-WLAN is a smart wireless LAN router for serial devices. To safeguard cybersecurity, security features such as Firewall, OpenVPN, GRE tunnel are supported. The embedded MQTTS and RESTful API enables instant public cloud integration such as AWS or Azure. The private cloud platform ThingsMaster and ThingsMaster OTA can also be set up for an instant and secured access to receive data or manage devices remotely.
